Background

The SEMI North America, the Information & Control Committee meets three times per year; spring summer and fall. This year the spring meetings were held on March 25, 26, 27 at SEMI headquarters in Milpitas, CA. The meetings include task forces with leaders from Cimetrix on the GEM 300, ABFI (Advanced Backend Factory Integration), GUI, DDA, CDS task forces as well as the committee meeting on Wednesday. This is a summary of what happened in the task forces I am highly involved in including GEM 300, ABFI and DDA. There were few ballots this last cycle, especially compared to the last meetings.

Note that all ballots that pass in the committee are still subject to a final review by the global SEMI Audit & Review committee, where a ballot can still fail when proper SEMI procedures and regulations are not strictly followed. This is rare in the North America Information & Control Committee but can happen.

GEM 300 Task Force

Ballot 6836A was modified to address issues raised by several voting members at the fall meetings. In this round of voting, the ballot passed with no rejecting votes and some minor comments from me. Ballot 6836A modifies both specifications E87 Carrier Management and E90 Substrate Tracking. In Substrate Tracking, the substrate object now defines a new optional attribute, “AdditionalInfo”. This attribute is used to designate a list of name/value pair information to be used as needed. The existence of the attribute is standardized, but the usage and values for the names in the name/value pair are custom to be used as needed. For example, an equipment handling multiple substrate types can use a name/value pair to distinguish between the different substrate types. In Carrier Management, carrier objects now define a related new optional attribute “AdditionalSubstrateInfoMap” to store the list of name/value pair information for all substrates in a carrier. These new features enable GEM 300 like E90 and E87 standards to be more easily adapted to all types of equipment and applications.

The Japan GEM 300 task force has proposed ballot 7173 to make minor improvements to the text in the GEM E30 standard. The proposed changes have been submitted to other regions including North America for review. None of the changes are technically significant and should not affect existing GEM implementations.

A few new ideas for ballots were also discussed at the task force. Following are some details on two items that were discussed.

The most prominent new discussion proposes changes to the E157 Specification for Module Process Tracking. Currently, adoption for this standard is limited to equipment that have one or more well-defined or virtual process modules. There are many types of equipment outside of Semiconductor Front-End that do not have a clear concept of a process module like equipment with conveyors moving substrates through the equipment. The new ballot would propose modifications to E157 to define a new, similar state model that can be adapted to report processing details for a substrate rather than a process module. This continues a trend at SEMI to make changes to allow for easier GEM adoption in other industries and more types of equipment.

Another ballot proposes some changes to the new ‘well-known’ subordinate standards to the GEM and GEM 300 standards that establishes standardized names for the alarms, data variables, collection events, status variables and equipment constants required by these standards. While these new subordinate standards have not yet been published, a couple changes are under consideration soon once they are published.

DDA (Diagnostics Data Acquisition) Task Force

• Ballot 7174 was approved to update E128 Specification for SML Message Structures with language to include Transport Layer Security (TLS) because Secure Sockets Layer (SSL) has been deprecated by the Internet Engineering Task Force (IETF). E128 is a key standard in Equipment Data Acquisition communication freeze 1 and 2.
• Ballot 7175 was proposed to update E132 Specification for Equipment Client Authentication and Authorization and the E132 gRPC implementation with several issues found while preparing for EDA Vender Test #2.
  • Line item #1 introduced the most significant change; a modification to the password hash algorithm to be a binary array instead of a string. A binary array is more appropriate due to the software hash functions available to programmers. This line item failed due to a technical error in the ballot. The line item will be reworked to resolve this technical mistake and other errors that were revealed later in the week during EDA Vender Test #2.
  • Line item #2 moves some requirements from E134 to E132 in cooperation with ballot 7176. This ballot adds the requirements to E132 and passed.
• Ballot 7176 was approved to move requirements from E134 Specification for Data Collection Management to E132 in cooperation with ballot 7175 line item #2. This ballot removes the requirements from E134.
• Ballot 7191 approved changes to E179 Specification for Protocol Buffers Common Components. The ballot primarily introduces some optimizations to the protocol buffer usage to avoid sending parameter type information twice. This affects both ParameterValueType and ArrayParameterValue in the protocol buffer implementation. The changes also clarify the handling of 1, 2 and 4-byte integers by separating into unique types in E179.
• A software vendor test #2 was held on the day following the North America Information & Control Spring meetings. Anyone implementing client and/or server software was invited to attend. Instead of testing for standard compliance, the purpose of the vender test was to test interoperability and flush out any remaining issues in the EDA freeze 3 standards. This software vender test session #2 focused on previously untested E132 features from software vender test session #1 and will also include E125 tests. Several companies including Cimetrix attended the vender test session, providing both client and server functionality for testing against each other. Although official results of the test have not yet been made public, the primary issue discovered is that the password hash algorithm needs to be clarified.
• A software vender test session #3 will be held either immediately following the North America Information & Control Summer meetings held in conjunction with SEMICON West in July, or after the Fall meetings in November. This test session will focus on E134 testing. Mid-April the task force will decide when to proceed.
• Future ballots were proposed for E125, E134, and E179 without specific known issues. In addition to the open ballot for E132, the task force can handle making any last minute changes to the EDA standards before EDA freeze 3 is declared.

ABFI (Advanced Backend Factory Integration) Task Force

No ballots were adjudicated in the ABFI task force. Instead, the task force conducted several open discussions.

• A ballot has been approved to proposed modifications to E90 Specification for Substrate Tracking to accommodate equipment that have multiple substrate ID readers. Currently E90 assumes that an equipment only has one type of substrate and therefore one substrate ID reader. As the GEM 300 standards are implemented on more backend equipment, issues like this are revealed and need a standardized resolution.
• A previous proposal, 6840, to create a Specification for Equipment Adoption Criteria for GEM and GEM-Based Standards was cancelled. In its place a new proposal was approved to create a Guide for Equipment Adoption Criteria for GEM and GEM-Based Standards. A guide differs from a specification because it does not include any requirements. The new guide will help anyone implementing GEM technology understand how the vast number of GEM related standards fit together and when they should be used.
• A new activity was introduced to consider handling substrates with topside and bottom-side identification. More to come as the task force investigates this further.



SEMICON West 2024

The next North America Information and Control meetings will be held in conjunction with SEMICON West in San Francisco. The dates will be July 9-11, 2024. Due to the association with SEMICON West, these meeting typically have the most in person attendees.

Background

The SEMI North America, the Information & Control Committee meets three times per year; spring summer and fall. This year the fall meetings were held on November 6, 7 and 8, 2023 at SEMI headquarters in Milpitas, CA. The meetings include task forces with leaders from Cimetrix on the GEM 300, ABFI (Advanced Backend Factory Integration), GUI, DDA, CDS task forces as well as the committee meeting on the final day which was held on Thursday instead of the typical Wednesday. This is a summary of what happened in the task forces I am highly involved in including GEM 300, ABFI and DDA. The recent voting cycle included 22 ballots—the most ballots in one voting cycle that we have seen for a very long time.

Note that all ballots that pass in the committee are still subject to a final review by the global SEMI Audit & Review committee, where a ballot can still fail when proper SEMI procedures and regulations are not strictly followed.

GEM 300 Task Force

A lot is going on the GEM 300 task force. The following SEMI standards were reapproved: E39 and E39.1. Reapprovals occur every 5 years else a standard becomes inactive.

Ballot 7066A proposed changes to the SEMI E87 Carrier Management Services (CMS) standard. This ballot failed previous voting, but now time passed as a ‘superclean’ ballot (no negatives or comments during voting). This ballot included a significant change to the Carrier Ready to Unload Prediction feature which is now called a Carrier Complete Prediction. Anyone who implemented Carrier Ready to Unload Prediction will have to make a lot of changes to comply with the new implementation. A primary driver for this change is to accommodate internal buffer equipment where the READY TO UNLOAD state depends on when the host sends a CarrierOut message and the queue of previously requested activities; therefore, not a useful prediction to make.

The benefit of this new state model is to notify the factory host before a carrier is completed so that the automatic delivery can be scheduled to arrive for pickup when the carrier is ready. This can shorten the time it takes for the factory to move material from one equipment to the next.

Seven similar ballots 7114, 7115, 7116, 7117, 7118, 7119 and 7120 were submitted respectively for standards E5/E30, E40, E87, E90, E94, E116 and E157 to define a ‘well-known name’ for each require collection events, variables and alarms. The ‘well-known’ names are aliases for mapping purposes; necessary because each implementation can use different names. The ultimate goal of this feature is to make the GEM and standards based on GEM more plug-and-play. This new feature serves at least two purposes. Standard E172 already defines a well-known name attribute in the SECS Equipment Data Dictionary (SEDD) file. In the Equipment Data Acquisition (EDA) standard freeze 3 version, E164 will use this well-known name as well. The regular GEM documentation can also reference the well-known name. To explain the value of this feature, E90 requires a collection event for Substrate Location State Model transition 1. Implementers might define this collection event using any name such as E90_Loc_Unoccupied2Occupied, SLTrans1, SubstrateLocationUnoccupiedToOccupied or CollectionEvent901. Any name is allowed. The new well-known name establishes a standardized alias name called the well-known.

When ballot 7117 is published, the well-known name table establishes well-known name “E90:SubstrateLocation:001:Unoccupied-Occupied” as the standardized alias for this collection event. This SEDD file can be downloaded through the GEM interface, tell the GEM host exactly which collection event implements the Substrate Location State Model transition 1. During the Information & Control Committee, ballot 7117 resulted in a Ratification ballot handling a long existing E90 naming issue for one status variable. All of the other ballots passed with a simple editorial change.

A few of the above well-known name ballots included additional line items to resolve issues in the respective standard, mostly editorial or minor. Ballot 7114 included an E5 clarification that Stream 21 Function 17/18 sequence can be aborted by the receiving entity with an S21F0 message. Ballot 7116 included several additional changes/corrections to E87.

1.    Clarification on the CARRIER SLOT MAP STATUS state SLOT MAP VERIFICATION FAILED, which sometimes was spelled in E87 without the ‘ED’ in FAILED.
2.    Corrections to Table R1-21 in the table heading.

3.    Carrier object attribute Capacity can now be format code 51, 52 or 54, increasing the allowed carrier size from 255 to 4.29 GB to accommodate carriers not holding wafers but smaller substrates.
4.    Carrer state model transition 7 includes a new trigger as already described scenario R1-21.
5.    Scenario R1-20 was reverted to its original design, undoing an error introduced in 2012

6.    And finally, equipment constant BypassReadID was added to E87.1. This equipment constant has been defined in E87 but missing in E87.1

Ballot 9836 proposed some synchronized changes in E87 and E90 to define new name/value pair attributes. The ballot failed due to some limiting details in the value format definition. The ballot intends to allow equipment and factory to agree to using additional substrate content and characteristic information.

The Japan GEM 300 task force is working on improving the GEM E30 standard. The task force proposed a number of minor improvements mostly editorial to clean up several areas with the specification. Although the work was originally proposed to occur in the North America group, the task force decided to handle this ballot in Japan who will meet in December of 2023. Of course, the regional GEM 300 task forces worldwide all share and vote together on all E30 ballots.

DDA (Diagnostics Data Acquisition) Task Force

The DDA task force reapproved three standards: E128, E138 and 145. Additionally, the DDA task force made more plans to complete the Equipment Data Acquisition (EDA) freeze 3 version. Here are the key activities and findings as of today:

• E164 will be modified to incorporate the well-known names from the GEM 300 force. Instead of including all GEM 300 standards directly in the E164 primary standard, each GEM 300 standard will have a smaller, simpler E164 subordinate standards (E164.1, E164.2, …) to define the EDA implementation for that standard. This strategy makes adopting EDA and E164 more flexible to use in industries beyond semiconductor front end equipment.
• Some errors were found in the published .proto files for E132 and E134. New ballots will be submitted as soon as possible to make corrections.
• A software vendor test #2 will be held immediately following the North America Information & Control Spring meetings. Anyone implementing client and/or server software is invited to attend. Instead of testing for standard compliance, the purpose of the vender test is to test interoperability and flush out any remaining issues in the EDA freeze 3 standards. This software vender test session #2 will focus on previously untested E132 features from software vender test session #1 and will also include E125 tests. Anyone interested in joining should contact me (Brian Rubow) or Albert Fuchigami (Brian’s co-leader). Prior to the software vender test session, the task force co-leaders will provide a test plan document and .proto files with corrections in E132 for known issues.
• A software vender test session #3 will be held immediately following the North America Information & Control Summer meetings held in conjunction with SEMICON West. This test session will focus on E134 testing.

ABFI (Advanced Backend Factory Integration) Task Force

Ratification ballots R2924A and R6925A both passed. This means that the new Consumables and Durables standard is in the SEMI publication queue.

Additionally, ballot 6948 passed with several great improvements to the E142 substrate mapping standard. The improvements should help users better understand how to use the E142 schema files for more consistent adoption by implementers.

Spring 2024

The next North America Information and Control spring meetings will be held again at SEMI headquarters in Milpitas, California. The dates will be March 25-27, 2024. Although many attendees were remote during these meetings, I expect many more attendees to be in person at these spring meetings due to the EDA software vender test session.

To learn more about the SEMI Standards and the work we do as members of SEMI, please click the button below.

Background

The China summer SEMI Standards meeting was convened on August 8, 2023 in Shanghai. Two task forces met; the ABFI (Advanced Backend Factory Integration) and GEM300 Task force in the TC China Chapter. I actively participated in both task forces to closely monitor and comprehend all activities discussed during the meeting.

ABFI (Advanced Backend Factory Integration) Task Force

Ballot 7018, one Line Item revision to the SEMI E87-0921, Specification For Carrier Management(CMS) and E87.1-0921, Specification for SECS-II Protocol for Carrier Management(CMS).

It provides a means for the host or equipment to provide the slot map, which contains information regarding the correct and incorrect placement of substrates within a carrier. Additionally, it supports configuration settings that indicate the slot map is not read and will not be verified against host-provided information.  Furthermore, new related roundtrip scenarios are added to Related Information 1 – Carrier Object ID when the equipment lack the hardware for scanning a carrier’s slot map. This ballot was submitted for cycle-2 voting in February 2023 but received three rejections with a total of five negatives. During the ABFI Task Force meeting, we thoroughly reviewed and addressed these negative items.  Consequently, we will revise this ballot accordingly and submit it to the A&R committee for review.

1. Line Item #1, Reject from Miyamoto Motoki (Yokogawa)
   • Negative 1 to Line Item #1 :  Accepted and do modification according to negative comments.
   • Negative 2 to Line Item #1-g : Accept and do modification according to negative comments.
2. Line Item #1 Reject from Matsuda Mitsuhiro (KKR)
   • Negative 1 to Document 7018 Line Item #1:  Negatives is not related with this ballot. This negative was not accepted by Task Force.
   • Negative 2 to Document 7018 Line Item #1:  Negatives is related but not persuasive. This negative was not accepted by Task Force.
3. Line Item #5 Reject No.1 from Mochizuki Tadashi (TEL)
   • After communication, voter withdrew the reject.

GEM 300 Task Force

In this task force we proposed two SNARFs, one for a line item revision to E40-1218, Specification For Processing Management, and another for E40.1-1218, Specification For SECS-II Protocol For Processing Management, and another for a line item revision to E94-0819R, Specification For Control Job Management and the E94.1-0819R, Specification For SECS-II Protocol For Control Job Management (CJM).

Some background information is useful here. In the semiconductor industry, the E90 Specification for Substrate Tracking, E40 and E94 are used together to monitor the substrate and job status in most 300mm frontend and advanced backend factories. Typically, after completing a job, it is the responsibility of the factory host to check the state of all materials to determine if the job has been successfully finished. However, some factories do not track E90 substrate events, and/or certain equipment types lack the capability to report such events. Additionally, some factories believe that the calculation of processed materials, failed materials and  unprocessed materials in a job should be performed on the equipment side, which then provides the final processed results. These factors make it challenging for the factory host to check the process status (processed, failed or unprocessed) of all materials in a job. As more straightforward data reporting requirements have accumulated from various factories, many equipment suppliers have developed their own means for delivering the processed substrate lists and counts. However, due to a lack of reference standards for these requirements and implementations, many variations exist in the data formats used to serve this single purpose.

These two SNARFs include revisions as follows to cover the above requirements and gaps:
1. Add new definitions for the Processed, Failed and Unprocessed state of materials.
2. Add a state matrix to better explain the E90 substrate processing states
3. Add new material processing result-related variables for job (process job and control job) events.
4. Add new object attributes for material processing result of job a (process job and control job) objects.


Note that these two SNARFs have undergone formal review, and ballots 7139 and 7140 were created as a result.

This blog provides a summary of the deliberations that took place during both task force meetings. For more information about these standards meetings, or questions about Cimetrix, please contact us by clicking the button below.

The Cimetrix EquipmentTest software product provides a feature for creating a user interface which can be thoroughly customized according to user preferences. The user interface is created as a user control in Microsoft Windows Presentation Framework (WPF) using the standard .NET Integrated Development Environment, and appears as a separate tab following the default “Tests” tab in EquipmentTest. The tab header can also be customized to fit different testing scenarios. Note that the EquipmentTest Pro version is required to develop a customized GUI tab in any plug-in.

This feature is useful for a variety of user types. For instance, factories can run tests back to back on their equipment and use the custom GUI feature to save the output logs as separate files on the system to efficiently identify failed cases. Equipment manufacturers can use this feature to customize their test scenarios and analyze results in a way that enables the comparison of previous test output data to the latest results. Other user types may imagineer all sorts of additional possibilities, making EquipmentTest a truly versatile tool.

How To Add a Custom GUI Tab To a Plug-in

One can either override or append to the OtherTabs property of the PluginBaseModel class to add as many GUI tabs as needed. The examples below include code snippets for both cases.

The following image shows a general plug-in with two GUI tabs in which the custom GUI has been modified to contain a single button.

Uses for Customized GUIs in a Plug-In

The following paragraphs discuss two elegant uses for customized GUIs in EquipmentTest.

Duplicate a Different Control Panel

If you are a new user of EquipmentTest, you can use the custom GUI feature to recreate familiar interfaces from other test systems. Since the GUI is developed in WPF, you have a great deal of flexibility and control over the layout and operation of the GUI. This means that the tests can be modified to be run according to  specific user selections, and/or additional information specific to the chosen tests can be included on the GUI. For instance, logs can be modified to include more detail than is currently shown on the default screen.

The following Images show the TESTConnect user interface and its recreated GUI on EquipmentTest. Of course, it is not an exact replica, but most of the original functionality can be supported, and with some effort, the GUI could be modified to become an exact match.

Compile On the Fly

The EquipmentTest custom GUI feature enables use of the compile-on-the-fly capability of .NET. If you can dynamically write and run test code, tests scenarios can be changed without editing, rebuilding, and loading the plug-in each time a change is required. this results in a faster and more efficient testing process.

The “Compile” method defined below takes in the test code to be run as a parameter. It is then compiled to create a DLL library with the required references. Any compilation errors are written to a designated TextBox on the GUI through the event handler “WriteLog”.

The following image is a GEM plug-in with an additional custom control panel for dynamically running code. The TextBox is dedicated for writing code, and the various buttons are used to control the testing procedures. This example is part of a project that supported direct execution of TESTConnect scripts in EquipmentTest.

The first task was creating a console application to generate an XML file containing the converted C# test code of the TESTConnect script to be passed as the argument. The next task was developing an EquipmentTest plug-in that loads the XML file and displays each script as a separate test on the example GUI shown below. This example is designed to support any number of tests, and new tests can be added using the “New” button. In this way, you can directly write code to send messages and check to see if the reply message is the expected one. The example also defines wrapper methods to reuse this messaging code and thereby speeding the development process for similar use cases. Console output can be redirected to text boxes designated for logging, and wrapper methods can be defined to log message details. Although this feature effectively enables scripting in EquipmentTest, there are a few drawbacks that must be addressed. Whenever you need to use a new API method, you must add the reference to the required library in the plug-in, rebuild and load it again to continue testing. A good solution is a 'Save' button which allows you to create an XML file similar to the one you initially loaded with the current changes so you can directly load it after adding the library references. Another issue is that the aesthetic feel code written in Visual Studio will differ from that of the text boxes in EquipmentTest.

However, the overall picture is bigger than what I have explained here. You can customize EquipmentTest to run your tests in any way you prefer. If you need more space to write your test code, you can edit the test code in a C# file stored on your computer and directly run it from EquipmentTest. You may or may not display the code on a text box on the EquipmentTest GUI. Moreover, you can also save the generated output logs in a local file as well. It is up to you to further explore this feature.

Conclusion

In the previous paragraphs, we explained what a custom GUI plug-in is and how to access it with a dedicated GUI tab. This is a powerful capability that opens up a wide range of possibilities for all the users of EquipmentTest. We highly recommend that you explore this feature and puttit to good use to increase your testing productivity while reducing the overall effort to achieve results. The EquipmentTest documentation is a great source of additional information, and we sincerely hope we’ve convinced you to give it a try!

Process Recipe Management Custom Message Handling

Process Recipe Management provides a means to transfer process specifications and to share the management of these specifications between the host and the equipment. CCF provides GEM-compliant Process Recipe Management through class RecipeHandler which handles Steam 7 functions used for formatted and unformatted process programs. In some cases, CCF users may want to implement equipment-specific recipe handling, which can be done by extending the methods of RecipeHandler. For example, to customize host-initiated S7F5 for a recipe to be uploaded from the equipment, create a subclass MyRecipeHandler from RecipeHandler, and override the RecipeRequest method.

Follow this same approach to use the customized message handling class properly: before creating the FactoryAutomationServer, create a CimConnectServices and assign it to the CimConnectServices instance. Then create the custom message handling class MyRecipeHandler and assign it to the corresponding property on the CimConnectServices.Instance.

Custom SECS-II Message Handling

CCF provides a mechanism that enables the equipment’s GEM interface to support any SECS-II messages. These can be additional SECS-II messages defined in the SEMI E5 standard but not supported by CCF, and/or they can be custom SECS-II messages defined by and required by the end user or by the equipment supplier. For example, if a user wants to handle a custom message S100F1, they can create a subclass CustomMessageHandler and let it implement the IGemHandler interface, and then initialize it by overriding the Initialize method of CIMConnectServices.

To learn more about GEM interface custom message handling, please schedule a time to talk with a Cimetrix representative by clicking the button below.

This blog explains an approach that Cimetrix CIMControlFramework^TM (CCF) developers can use to dynamically generate ECVs (EquipmentConstant Variables) in source code as a convenient, effective alternative to including them in the default configuration file.

When implementing the GEM interface for equipment, it is often necessary to define EquipmentConstant Variables (ECVs). If the GEM interface is part of a CCF-based equipment control system, you would normally define the ECVs in the Equipment.epj file. However, registering the ECVs with this approach can take a lot of effort in a number of situations. Among them:

• When you need to register hundreds or even thousands of ECVs;
• When you need to dynamically register ECVs based on the specific configuration of an instance of the equipment;
• When you want to register ECVs without changing the EPJ file.

In these cases, dynamically generating the ECVs from the source code easily addresses these challenges.

The rest of this posting briefly shows you how to accomplish this, and how to change and monitor the values of ECVs.

How to generate ECVs programmatically

After calling ecs.Start() inside Supervisor's Run(), the code sample below generates an ECV.

What you need to be most careful about here is that the ecid and ECV’s name should not be duplicated with other VIDs.

Then you can see the newly generated ECV  in the Equipment Constants screen of the OperatorInterface.

How to change the value of an ECV

The ECV’s value can be updated  through FactoryAutomationServer using the code below.

You can then see a message that the ECV’s value has been changed.

How to detect the ECV’s value change

If you want to detect changes to the ECV’s value, you can receive a callback  by registering ValueChangedHandler as shown in the code sample below.

To Summarize:

• You can dynamically generate an ECV by calling CreateVariable of CIMConnect;
• You can change the value of an ECV by calling SetEquipmentConstants of FactoryAutomationServer;
• You can detect changes in the value of the ECV by calling RegisterValueChangeHandler of CIMConnect.

All are helpful solutions for CCF developers who need to generate ECVs dynamically.

To learn more about this solution and other CCF programming best practices, please schedule a time to talk with a Cimetrix representative.

Background

At SEMI in North America, the Information & Control Committee meets three times per year; spring summer and fall. This year the summer meetings were held on July 10, 11 and 13 in conjunction with SEMICON West is San Francisco, CA. The meetings include task forces with leaders from Cimetrix on the GEM 300, ABFI (Advanced Backend Factory Integration), GUI, DDA, CDS task forces as well as the committee meeting on the final day which was held on Thursday instead of the typical Wednesday. This is a summary of what happened in the task forces I am highly involved in including GEM 300, ABFI and DDA as well as some updates from SEMI.

Note that all ballots that pass are still subject to a final review by the global SEMI Audit & Review committee, where a ballot can still fail when proper SEMI procedures and regulations were not strictly followed.

SEMI

A few changes are happening at SEMI. SEMI is planning to start publishing ‘red-line’ versions of the SEMI standards. Today, when a new version of a SEMI standard is published, it includes change bars on the side to indicate where changes have occurred. The changed section can then be compared with the previous publication to see what changed. While this is helpful to readers, the planned ‘red-line’ versions will identify precise changes using redline strikethrough and underlining to identify the changes. This is a big benefit to the standards community. I look forward to seeing this new feature.

SEMI is planning to add additional digital enforcement to the SEMI standard documents to help enforce SEMI’s copyright to the standards. This should help curb some of the copyright abuse. Every company implementing or using the SEMI standards should have at least one subscription to SEMIViews, https://www.semiviews.org/.

SEMI has hired another technical writer to help keep SEMI standard publication up to date. Recently, the growing queue of standards awaiting publication has affected SEMI standards development. For example, this has caused delays in the DDA task force developing EDA Freeze 3. In the last 9 months, SEMI has already reduced the publication queue substantially and is committed to catching up early in 2024.

GEM 300 Task Force

A lot is going on the GEM 300 task force.

Ballot 7065, an update to the SEMI E172 passed nearly super-clean. SEMI E172, SPECIFICATION FOR SECS EQUIPMENT DATA DICTIONARY (SEDD) defines the XML schema for documenting a GEM interface. Recently the GEM standard was updated to allow transfer of a SEDD file through the GEM interface using Stream 21 messages. Ballot 7065 adds a few new features and changes to the schema files. The most important changes are names for alarms and a ‘well-known’ element to all collection events, variables, and alarms. This ‘well-known’ element is meant to contain a standardized alias so that end users can automatically map an implementation to required items in the SEMI standards. To capitalize on the new E172 ‘well-known’ feature, new ballots were approved to modify E5/E30, E40, E87, E90, E94, E116 and E157 to include standardized ‘well known’ names. These ballots are expected to be completed in time for cycle 7 voting this year.

Ballot 7066 proposed changes to the SEMI E87 Carrier Management Services (CMS) standard. This included a significant change to the new Carrier Ready to Unload Prediction feature. The primary driver for this change is to accommodate internal buffer equipment where the READY TO UNLOAD state depends on when the host sends a CarrierOut message and can be drastically impacted by the carrier-out queue. The ballot proposes to use CARRIER COMPLETE prediction instead, which can be universally applied both fixed buffer and internal buffer equipment. The change has little impact on fixed buffer equipment, where the time between CARRIER COMPLETE and READY TO UNLOAD is typically short and a fixed time. Unfortunately, this line item in the ballot needs some rework before it is ready for acceptance.

The other line items in ballot 7066 passed including a clarification to the ContentMap behavior and an update to the CMS compliance statement. Two requirements related to the ContentMap were in contradiction to each other affecting the ContentMap value when a carrier object is instantiated. The clarification allows the ContentMap to either be an empty list or a structured list of empty lot and substrate ID information. The change only affects the initial value. The compliance statement change adds the missing “Access Mode State Model” to the compliance statement so implementers can declare whether this feature is implemented and compliant.

Ballot 6991 also passed as super-clean (no negative votes) to update SEMI E4 SEMI Equipment Communications Standard 1 Message Transfer (SECS-I). The update removes biased terminology to be compliant with recently updated SEMI regulations. No technical changes were made.

ABFI (Advanced Backend Factory Integration) Task Force

New proposed standards for Consumables and Durables (ballots 6924A and 6925A) both will require Ratification ballots. This means that a few technical changes need to be made for the new standards to be accepted. Ratification ballots R6924A and R6925A will be submitted in the next voting cycle with those technical changes. If this passes, then the new standards will be published. If it fails, then the ballots will be reworked for another voting cycle.

DDA (Diagnostics Data Acquisition) Task Force

The DDA task force meeting was relatively quiet and uneventful for the first time in years while the task force waits for accepted ballots to be published including updates to E125/E125.2, E134/E134.2, and E120.2. No ballots were adjudicated. Ratification ballot R7002 for SEMI standards E132 and E132.2 passed in the voting cycle 4. Meanwhile new versions of E121 and E179 were published by SEMI in April and June, respectively.

Next steps for the DDA task force include updating E164 and planning a ‘vendor test session’. The E164 update is tied to the GEM 300 ‘well-known’ feature mentioned above, where the E164 names and IDs will be synchronized with the aliases added to the GEM 300 standards. The vendor test session is planned to occur during Spring 2024. Any company wishing to participate to validate EDA client or server software against other implementations is welcome. Participants will run through a small set of E132 scenarios, E125 scenarios and E134 scenarios to validate the current standards. Any issues found during this testing will be quickly resolved so that an EDA freeze 3 version can finally be declared. The task force leaders plan to share a test plan before Fall meetings to help everyone prepare.

Have you experienced a lack of storage space on your equipment?

There can be many reasons for this, and one of them is a lack of space for saving logs.

One of our Cimetrix CIMConnect customers had this issue and asked if there is a way to add storage to their tool. The engineer commented that there are no available USB slots on their equipment computer. Therefore, he got permission to add a network drive to their system.

How to configure an external network drive for CIMConnect logging

1. Connect an external storage device to the network and you may see it in your File Explorer.
2. Run CIMConnect Control Panel
   1. Go to the equipment tab (“Equipment1” in this view)
   2. Go to “Logging Configuration” under “Equipment” menu.
   3. Click on the folder icon next to the “Directory” text box.
   4. In the “Browse For Folder” window, find your network drive.

      Here’s tricky part: you may find one under your network, not a mapped one.  It will give an absolute path name, such as “\\RT-AX56U-83E8\Cimetrix_Ian\CIMConnect Logs”
3. If you still cannot see any log files created in that network drive directory.
   In this case, please follow the steps below to register EMService as a COM Local Server.

   1. Open Windows Command Prompt as an Administrator.
   2. Type “EMService.exe /RegServer” (without quotation marks) and hit Enter.
   3. Restart your EMService: go to Windows “Services” and select EMService then click “Restart”.


These steps set a network drive as your extended CIMConnect storage.

To Summarize:

1. Connect an external drive to your network.
2. Use CIMConnect Control Panel to find and set up the added drive. Don’t forget to configure one in the network, not a mapped drive.
3. Register CIMConnect’s EMService as your COM local server.
4. Restart EMService and enjoy the extra storage.

As I mentioned at the beginning, this is a good solution for those who do not have sufficient storage in their existing equipment control system. It is usually difficult to replace the entire PC on your equipment, but external storage can be as simple as I described in this posting.

To learn more about CIMConnect, logging or other products,  please feel free to reach out by clicking the button below.

In the semiconductor industry, the fabrication process is a complex process and involves multiple steps to achieve the desired result. Each process step uses different types of equipment. Semiconductor industry equipment uses a specific type of communication protocol called SECS/GEM (SEMI equipment communication standard and Generic equipment model).

High-level architecture of a fabrication factory

• MES: Manufacturing Execution System is the central part of the production process. It connects with multiple equipment and monitors the progress of material in individual equipment and the entire factory at the same time. It integrates the ERP system (Enterprise Resource Planning) and individual machines.
• MES DB: It is a MES database system that will store the MES related information including recipe information.
• FDC: Fault Detection and Classification is used to continuously monitor the sensor data coming from the equipment and analyze and detect fault to prevent it from reoccurrence.
• APC: Advanced Process Control uses R2R (Run to Run) method that adjust the process parameters based on the incoming and outgoing data from an equipment for a material in combination with process model.
• Host: This is an application that connects with the equipment via SECS/GEM. This application instructs the equipment to process the materials and retrieve the related information.
• Equipment: This is a tool that performs and process the incoming materials based on the instruction given by the host.
• DB: This is an equipment database that can store the material processing information as a raw data form. (Example Metrology tool data).

Some of the SECS/GEM standards we will highlight are E4, E37, E5 and E30.

Communication Layer

There are two different types of GEM communication models.

• SEMI E4 standard which is SECS-I a serial communication model that uses RS-232.
• SEMI E37 standard which is HSMS communication model that uses TCP/IP. (There is a subset of E37 standard is called E37.1 HSMS-SS).

Message Structure Layer

The Message Structure Layer is also called the SEMI E5 standard. A typical SECS/GEM message contains a header and a body. The Header contains Stream and Function, and a Body contains a list of one or more data items. Each data items may contain another list of data items. Refer the below example.

GEM Layer

Messages can be categorized into two types, the primary message and secondary message.

Primary messages are usually the request message that will be initiated by one party (Host/equipment). The secondary message will be the response that will be acknowledged by the other party (host/equipment).

Some common GEM messages include:

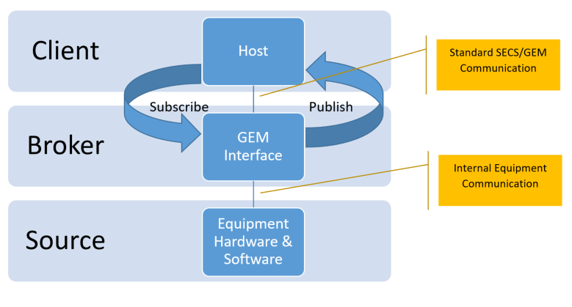

• Collection Events – these messages are raised when the equipment processes the substrates using S6F11.
• Alarms – these messages are raised when any problem occurs at the equipment using S5F1.
• Remote Commands – these messages are sent by the host to command the equipment using S2F41.
• Recipe Management – these messages manage the recipes and can sent by either party. Example: S7F3 is the recipe download command.

A typical process flow between a host and the GEM based equipment is explained below.

Conclusion

This blog post has summarized how the factory host communicates with equipment using SECS/GEM protocol. At the Cimetrix Connectivity Group of PDF Solutions, we have products for the factory hosts that can easily be integrated with any existing systems with minimal configuration settings. To learn more about our products for the factory host click on the below button.

If you’ve ever wondered how to implement the SEMI E30 GEM (Generic Equipment Model) communications standard in a PLC-based equipment control system, read on – this posting is for you!

What problem does the GEM OPC Connector Application solve?

The Cimetrix CIMConnect product provides a software library that equipment suppliers in a wide range of manufacturing industries use to integrate the GEM standard into their equipment control systems and associated applications. These applications are typically written in C#, VB.NET, or C++, which must run on a Microsoft Windows operating system.

This solution works great for equipment controllers that run on Windows, but what about equipment that does not use a Windows-based control system? In particular, some equipment controllers are PLC based and therefore cannot use the CIMConnect libraries directly. What then? The GEM OPC Connector application very effectively addresses this specific situation.

GEM OPC Connector Application Description

The screenshot below shows the GEM State Settings and current status of a GEM interface implemented by the GEM OPC Connector application.

The GEM OPC Connector is provided as a CIMConnect sample application. Several of our customers have used it to implement a GEM interface for their PLC-based equipment applications. Since it runs on the same computer as CIMConnect, it requires a Windows operating system, but thankfully, most equipment types that have PLC-based controllers also have a Windows computer somewhere in the overall control system. For example, the HMIs (Human-Machine Interfaces) on much of this equipment run on Windows computers and use OPC UA (or OPC Classic) to share data between the HMI and PLC controllers. In this configuration, CIMConnect and the GEM OPC Connector application can be installed on the HMI Windows computer and connect to the same OPC UA server that the HMI uses (see the block diagram below). Of course, if the equipment controller does not already have a Windows computer, one would have to be added to the controller to use this solution.

How Does it Work?

The GEM OPC Connector application is both a CIMConnect application and an OPC client. GEM features are supported by CIMConnect and variables defined in the OPC server can be used to invoke method calls in CIMConnect or to receive notifications from CIMConnect. OPC variables can be used to:

1. Update status variables (SVIDs) and equipment constants (ECIDs)
2. Trigger collection events (CEIDs)
3. Set or Clear alarms.
4. Receive notification of remote commands from the host.
5. Invoke custom methods. For example, there are pre-defined methods to:
   1. Set the Offline/Online switch,
   2. Set the Local/Remote switch,
   3. Enable/Disable GEM communication with the host,
   4. Change the GEM communication settings.

As OPC UA tags  are updated by the PLCs or the HMI, the GEM OPC Connector monitors these tag value changes and calls the appropriate methods in CIMConnect depending on the function of each OPC UA tag.

Data updates and control signals can go in the opposite direction as well. For example, when the host sends a remote command to the equipment, the GEM OPC Connector handles the remote command by updating the OPC UA tags associated with that remote command’s parameters and setting a Boolean OPC UA tag value to “True” to notify the PLC-based control application that a remote command has been invoked by the host.

An XML configuration file defines the various types of links between OPC UA tags and GEM artifacts. Each link describes a specific function and provides the additional information needed to perform that function. The following sections give examples for several common link types.

Variable Links

Variable links are used to keep GEM variables and OPC UA variables in sync.  The links look like this in the XML file:

This example links the GEM EstablishCommTimeout equipment constant (VID = 4000) to an OPC UA tag = “Channel1.Device1.Standard ECs.EstablishCommTimeout”. Since equipment constants can be updated by the operator or by the host, the Direction attribute is “Both”.

Alarm Links

Alarm links are used to Set and Clear GEM alarms. Alarm links look like this in the XML file:

This example links a GEM alarm (ALID = 20045) to a Boolean OPC UA tag = “Channel1.Device1.Alarms.PMTempTooHigh”.  The PLC software sets this value when an alarm state changes. The GEM OPC Connector monitors this tag for any value changes, and calls the SetAlarm() or ClearAlarm() methods in CIMConnect to update the associated alarm state accordingly.

Event Links

Event links are used to trigger GEM collection events. Event links look like this in the XML file:

This example links a GEM collection event (CEID = 5000) to a Boolean OPC UA tag = “Channel1.Device1.Events.LoadLockDoorOpened”. The GEM OPC Connector monitors this tag for any value changes, and when the value changes from 0 to 1, it calls a method in CIMConnect to trigger the associated event.

Remote Command Links

Remote command links are used to notify the PLC equipment application of a remote command initiated by the host. Remote command links look like this in the XML file:

This example links the GEM “PP-SELECT” remote command to the Boolean OPC UA Tag = “Channel1.Device1.RemoteCommands.PP-SELECT”. Parameter values are optional. In this case there is a single parameter linked to OPC UA tag = “Channel1.Device1.RemoteCommands.PP-SELECT_PPID”. When the host sends the PP-SELECT remote command using S2F41 “Host Command Send”, the GEM OPC Connector handles the message as follows: if the value of the Processing State is such that the equipment can accept this remote command, the parameter value will be updated first, and then the PP-SELECT value will be set to ”True” to notify the PLC application that the remote command was invoked.

Method Links

Method links are used to invoke custom methods in the GEM OPC Connector itself. Several pre-defined methods are available, and custom methods can be added, but the latter requires source code changes to the GEM OPC Connector application. Method links look like this in the XML file:

This example links the method named “PPChange” to the Boolean OPC UA tag = “Channel1.Device1.Methods.PPChange”. Methods may have parameters, and in this case, there are two parameters linked to OPC UA tags: one for the Process Program name that has changed, and another to describe the type of change that was made (Create, Edit, or Delete). To invoke this method, the PLC should first update the parameter values and then change the PPChange OPC UA tag value from 0 to 1 to notify the GEM OPC Connector that the method has been invoked. The GEM OPC Connector then looks for the method by name and executes the code.  In this example, it would update the GEM data variables PPChangeName and PPChangeStatus and trigger the PPChange collection event.

Conclusion

This quick overview of the GEM OPC Connector application is intended to pique your interest in this capability and prompt you to contact us to find out how much more there is to be learned. If you think the GEM OPC Connector might be right for you, reach out to us by clicking the button below for a demo !
